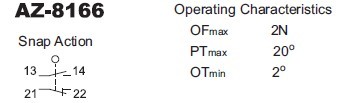

Compact Limit Switches AZ-8166

|
Features：
*Designed for applications of small mounting space
*Constructed with Metal based and plastic cover
*Mechanical movement and electrical line separtes
*Positive opening mechanism
*Improved current carrying capacity to 10A
|
Specifications:
Operating Speed: 0.05mm-2m/sec
Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ
Rated Voltage/Current: 10A/250VAC (EN60947-5-1)
Dielectric Strength: 1000VAC for 1 min between current carrying parts
2000VAC for 1 min between non-current carrying parts
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -20 to +70°C (-4 to 158oF)
Humidity: <95%RH
Degree of protection: IP65
|
