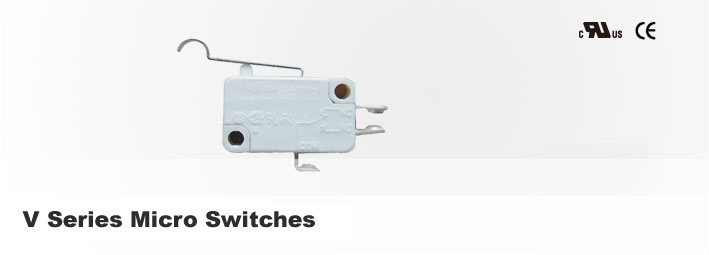

Specifications:
Operating Speed: 0.1mm to 1m/s
Operating Frequency: Mechanical: 600ops/min Electrical: 60ops/min
Insulation Resistance: 100MΩ min.(at 500VDC)
Contact Resistance: 30mΩ max(initial values)
Rated Voltage/Current 15A 1/2HP 125/250AV
Dielectric Strength: 1000VAC,50/60Hz for 1 min between terminals of the same polarity
2000VAC,50/60Hz for 1 min between current-carrying metal parts and
ground,and between each teminal and non-current-carrying metal parts
Service Life: Mechanically 1×107 (operations)
Electrically 1×105 (operations)
Operating Temperature: standard -40~85℃ high temperature -40~150℃
Degree of Protection: IEC IP00
|
