  • Overview

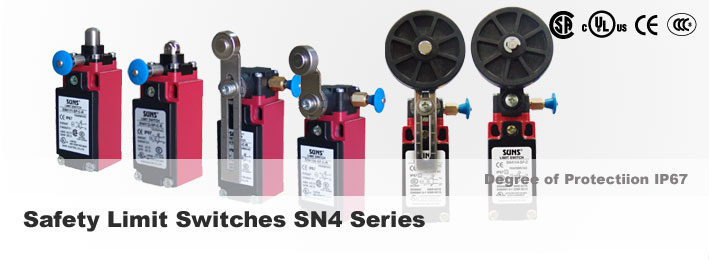

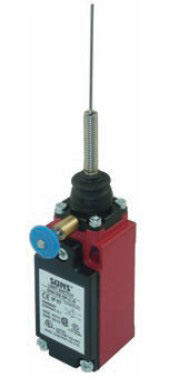

    SN4 Series with Reset Function
    Features:
    *Zinc die cast body
    *Earth grounding surface on same level as switching
    *Easily interchangeable contact block
    *Galvanically separated contacts
    *Screw terminals with self-lifting clamps for easy wiring
    *Positive Opening of NC contacts
    *4 x 90o actuator positions
    *Cable entry available: M20, PG13.5 and 1/2"NPT
    *Conform to EN 50047 standard
    		 Installation dimensions:
    Specifications:
    Operating Speed: 0.05mm-2m/sec
    Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min
    Insulation Resistance:　>100MΩ @ 500V DC
    Contact Resistance:　　<25mΩ
    Rated Current/Voltage:　10A/600V AC (EN60947-5-1)
    Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300
    Dielectric Strength:　1000VAC for 1 min between non-continuous terminals
    2500VAC for 1 min between each terminal and ground
    Service Life:　　　 Mechanically 10,000,000, Electrically 500,000
    Operating Temperature:　-25~80℃(-13~176°F) without formation of ice
    Humidity:　　　　 <95%RH
    Weight：　　　 200~250g
    Degree of protection:　 IP67
