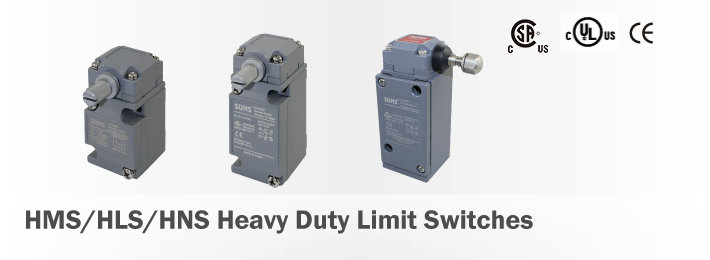

| HMS/HLS/HNS Heavy Duty Limit Switches |
Features:
· Solid zinc alloy casing,
For its harsh environment
· Conform to EN60947-5-1,
IEC 60947-5-1,
UL508,
NEMA250,
CSA22.2 standard
· A variety of optional actuators
· Repeat accuracy (0.03mm linear)
· Light indicator version available
· Three options cover:
Compact, standard, explosion-proof
|
Installation dimensions:
 |
Specifications:
Operating speed: 0.05mm-0.2m/sec
Rated Current/Voltage: 10A/600V AC (EN60947-5-1);
AC15 A600/DC13 Q300
Service life:10 million (minimum)
Electrical 1 million (minimum)
Operating temperature: -28.9 ~ +85 ℃ (-20 ~ 185 ° F)
Vibration: 25gn (10 .. 150Hz, 11ms) per IEC60068-2-6
Impact: 60gn (9ms) per IEC60068-2-27
Dielectric strength: 2200VAC for 1 minute
Short circuit protection: 10A fuse
Terminal line: 12-22AWG (2.05-0.644 square mm)
Degree of protection: IP67 conforming to IEC60529,
NEMA Types 2,4,6,6 P, 12,13
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
| Case:HLS |
1 |
A |
04 |
A |
-F |
-UR |
|
| Body Styles |
Contact Block |
Conduit |
Head Style |
Applied onto Lever Arms Style |
Rubber Seal Type |
Indicator Light |
Rotary Head Shaft Diameter |
| HMS:Compact |
1:SPDT(1NO/1NC)
Snap action |
A:1/2''NPT |
|
B:Standard |
Blank: Standard |
Blank:None |
Blank: 11.0mm |
HLS:Standard/
Plug-in |
2:DPDT(2NO/2NC)
Snap action |
|
|
A:High precision |
F:Fluorite rubber |
UR:Red indicator light(12V-270V) |
(AB): 8.0mm |
| HNS:Non-plug-in |
3:DPDT(2NO/2NC)
2-Stage |
|
|
N:Low torque |
|
|
(CH): 7.0mm |
| |
4:DPDT(2NO/2NC)
Center neutral operation |
|
|
D:High precision
low torque |
|
|
(HW): 7.3mm |
| |
5:4NO Slow action
For HNS only |
|
|
C:Maintained |
|
|
|
| |
6:3NO/1NC Slow action*
For HNS only |
|
|
TB:Neutral position |
|
|
|
| |
7:2NO/2NC Slow action*
For HNS only |
|
|
TB:Neutral position
high precision |
|
|
|
| |
8:1NO/3NC Slow action*
For HNS only |
|
|
E:360° rotation |
|
|
|
| |
9:4NC Slow action*
For HNS only |
|
|
|
|
|
*Stands for Positive Opening contacts |
