SM31 Compact Safety Limit Switches

Features: · Sub-body style · Modular · IP67 Waterproof model Model: SM31P11-01 : Snap Action SM31S11-01 : Slow Action

Installation dimensions:

Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:Mechanical:120ops/min                                 Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A(EN60947-5-1) Electrical Rating: AC15 A600/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min                               between non-continuous terminals                               2500VAC for 1 min                                between each terminal and ground Service Life:Mechanically 10,000,000, Electrically 500,000 Operating Temperature: -25~80℃(-13~176°F) without formation of ice Humidity:　　　　 <95%RH Cable：　 5 core:0.75mm²          　　7 core: 0.5mm²              9 core: 0.34mm² Degree of protection:　 IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

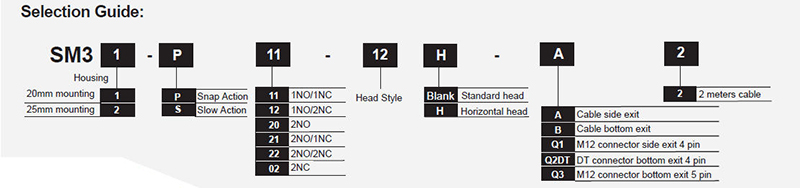

SM3	1	P	11	-12	-H	-A2
Series	Body style	Action type	Contact style	Head style	Head orientation	Connector style
	1:20mm Installation	P:Snap action	11:1NO/1NC		Blank：Standard	A2：2m line
	2:25mm Installation	S:Slow action	12:1NO/2NC		H：Horizontal	Q1：M12 connector side exit 4 pin
			20:2NO			Q2：M12 connector bottom exit 4 pin
			21:2NO/1NC			Q3：M12 connector side exit 5 pin
			22:2NO/2NC			Q4：M12 connector bottom exit 5 pin



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SM31P11-01/SM31S11-01 View Details	TYPE:SM31P11-02/SM31S11-02 View Details	TYPE:SM31P11-03/SM31S11-03 View Details
TYPE:SM31P11-04/SM31S11-04 View Details	TYPE:SM31P11-04s/SM31S11-04s View Details	TYPE:SM31P11-08/SM31S11-08 View Details
TYPE:SM31P11-07/SM31S11-07 View Details	TYPE:SM31P11-66/SM31S11-66 View Details	TYPE:SM31P11-69/SM31S11-69 View Details
TYPE:SM31P11-11/SM31S11-11 View Details	TYPE:SM31P11-12/SM31S11-12 View Details	TYPE:SM31P11-21/SM31S11-21 View Details
TYPE:SM31P11-22/SM31S11-22 View Details	TYPE:SM31P11-31/SM31S11-31 View Details	TYPE:SM31P11-32/SM31S11-32 View Details
TYPE:SM31P11-42/SM31S11-42 View Details	TYPE:SM31NP11-01/SM31NS11-01 View Details	TYPE:SM31NP11-12/SM31NS11-12 View Details
TYPE:SM31NP11-11/SM31NS11-11 View Details	TYPE:SM31NP11-22/SM31NS11-22 View Details	TYPE:SM31NP11-21/SM31NS11-21 View Details
TYPE:SM31NP11-02/SM31NS11-02 View Details	TYPE:SM31NP11-31/SM31NS11-31 View Details	TYPE:SM31NP11-03/SM31NS11-03 View Details
TYPE:SM31NP11-32/SM31NS11-32 View Details	TYPE:SM31NP11-42/SM31NS11-42 View Details	TYPE:SM31NP11-04/SM31NS11-04 View Details
TYPE:SM31NP11-04-S/SM31NS11-04-S View Details	TYPE:SM31NP11-07/SM31NS11-07 View Details	TYPE:SM31NP11-08/SM31NS11-08 View Details
TYPE:SM31NP11-69/SM31NS11-69 View Details	TYPE:SM31NP11-66/SM31NS11-66 View Details
