SMN5 Safety Limit Switches

Features:     * Designed for applications of       small mounting space     * Highly rigid construction       (head and cover snugly fit in box)     * Wide range of actuators available

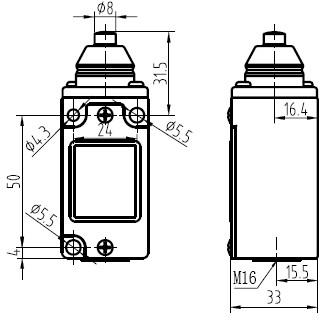

Installation dimensions:

Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:Mechanical:120ops/min                                 Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A/600V AC (EN60947-5-1) Electrical Rating: AC15 A600/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min                               between non-continuous terminals                               2500VAC for 1 min                                between each terminal and ground Service Life:Mechanically 10,000,000, Electrically 500,000 Operating Temperature: -25~80℃(-13~176°F) without formation of ice Humidity:　　　　 <95%RH Weight：　　　 240~290g Degree of protection:　 IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

SMN51	04	SP			D
Body Styles	Head Styles				Reset
		SP	Snap Action	1NO/1NC	D	M16 x 1.5
		SL	BBM Slow Action Changeover	1NO/1NC
		SL1	MBB Slow Action Overlapping	1NO/1NC
		SL2	Slow Action	2NC
		SL3	Slow Action	2NO



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SMN5111 View Details	TYPE:SMN5112 View Details	TYPE:SMN5104 View Details
TYPE:SMN5107 View Details	TYPE:SMN5108 View Details	TYPE:SMN5100 View Details
TYPE:SMN5166 View Details	TYPE:SMN5169 View Details
