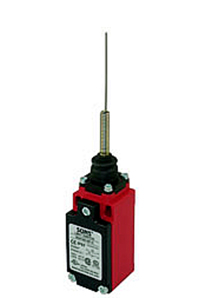

| SN4 Safety Limit Switches |
Features:
*Zinc die cast body
*Earth grounding surface on same level as switching
*Easily interchangeable contact block
*Galvanically separated contacts
*Screw terminals with self-lifting clamps for easy wiring
*Positive Opening of NC contacts
*4 x 90o actuator positions
*Cable entry available: M20, PG13.5 and 1/2"NPT
*Conform to EN 50047 standard |
Installation dimensions:
 |
Specifications:
Operating Speed: 0.05mm-2m/sec
Operating Frequency: Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ
Rated Current/Voltage: 10A/600V AC (EN60947-5-1)
Electrical Rating: UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300
Dielectric Strength: 1000VAC for 1 min between non-continuous terminals
2500VAC for 1 min between each terminal and ground
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -25~80℃(-13~176°F) without formation of ice
Humidity: <95%RH
Weight： 200~250g
Degree of protection: IP67
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
| Case: SN41 |
04 |
-SP |
-C |
P |
L |
-R |
| Body Styles |
Head
Styles |
Contact Block |
Conduits |
Roller
material |
Reset
Elongated |
Reset |
| SN41: single conduit |
|
SP:1NO/1NC
Snap action |
A:1/2"NPT |
blank:metal |
blank |
blank |
| |
|
SL:1NO/1NC
Slow Action
changeover |
B:PG13.5 |
P: Nylon
Roller |
L:Reset
Elongated |
R:With Reset |
| |
|
SL1:1NO/1NC
Slow Action
Overlapping |
C:M20 |
|
|
N:Neutral Pos.
(For SL2 Rotary)
|
| |
|
SL2:2NC Slow Action |
D:M16 |
|
|
|
| |
|
SL3:2NO Slow Action |
B1:PG11 |
|
|
|
| |
|
SL4:3NC Slow Action |
|
|
|
|
| |
|
SL5:3NO Slow Action |
|
|
|
|
| |
|
SL6:2NC/1NO
Slow Action
changeover |
|
|
|
|
| |
|
SL7:2NC/1NO
Slow Action
Overlapping |
|
|
|
|
| |
|
SL8:2NO/1NC
Slow Action
changeover |
|
|
|
|
| |
|
SL9:2NO/1NC
Slow Action
Overlapping |
|
|
|
|
