SND6 Safety Limit Switches

Features: *Glass fiber reinforced plastic body *Increased wiring space *Easily interchangeable contact block *Galvanically separated contacts *Screw terminals with self-lifting clamps for easy wiring *Positive Opening of NC contacts *4 x 90° actuator positions *Cable entry available: M20, PG13.5 and 1/2"NPT *Conform to EN 50041 standard

Installation dimensions:

Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A/600V AC (EN60947-5-1) Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min between non-continuous terminals 　　　　　　　2500VAC for 1 min between each terminal and ground Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 Operating Temperature:　-25~80℃(-13~176°F) without formation of ice Humidity:　　　　 <95%RH Weight：　　　 150~230g Degree of protection:　 IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



Case: SND61	04	-SP	-C	P	-R
Body Styles	Head Styles	Contact Block	Conduits	Roller Material	Reset
SND61: Plastic body              Metal head		SP:1NO/1NC Snap action	A:1/2"NPT	Blank:metal	Blank
		SL:1NO/1NC Slow Action Changeover	B:PG13.5	P: Nylon Roller	R:With Reset
		SL1:1NO/1NC Slow Action Overlapping	C:M20
		SL2:2NC Slow Action	D:M16
		SL3:2NO Slow Action	B1:PG11
		SL4:3NC Slow Action
		SL5:3NO Slow Action
		SL6:2NC/1NO Slow Action Changeover
		SL7:2NC/1NO Slow Action  Overlapping
		SL8:2NO/1NC Slow Action Changeover
		SL9:2NO/1NC Slow Action Overlapping



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SND6107-R(AB) View Details	TYPE:SND6118-R(AB) View Details	TYPE:SND6114-R(AB) View Details
TYPE:SND6108-R(AB) View Details	TYPE:SND6104-R(AB) View Details	TYPE:SND6118(AB) View Details
TYPE:SND6114(AB) View Details	TYPE:SND6108(AB) View Details	TYPE:SND6105(AB) View Details
TYPE:SND6107(AB) View Details	TYPE:SND6104(AB) View Details	TYPE:SND6172 View Details
TYPE:SND6173 View Details	TYPE:SND6111-L View Details	TYPE:SND6107 View Details
TYPE:SND6104 View Details	TYPE:SND6112 View Details	TYPE:SND6111 View Details
TYPE:SND6169 View Details	TYPE:SND6118-R View Details	TYPE:SND6104-R View Details

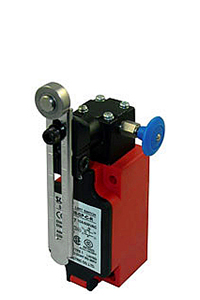

TYPE:SND6114-R View Details	TYPE:SND6107-R View Details	TYPE:SND6108-R View Details
TYPE:SND6170-LR View Details	TYPE:SND6166 View Details	TYPE:SND6100 View Details
TYPE:SND6105 View Details	TYPE:SND6118 View Details	TYPE:SND6114 View Details

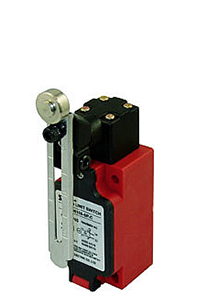

TYPE:SND6108 View Details
