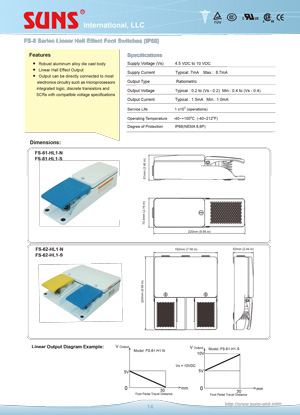

FS-6 Series Linear Hall Effect Foot Switches(IP68)

Features: •Robust aluminum alloy die cast body •Linear Hall Effect Output •Output can be directly connected to most electronics circuitry such as microprocessors integrated logic, discrete transistors and SCRs with compatible voltage specifications

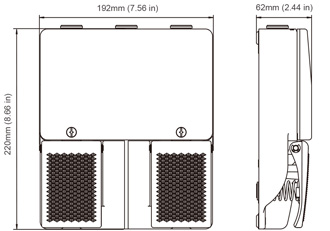

Installation dimensions:

Specifications: Supply Voltage (Vs) Switch output H1: 3.8-30VDC Analog output H2: 4.5-10.5 VDC H3: 30VAC H5/H10: 10-30VDC Supply Current H1: 45mA H2: 7mA H3: 20mA H5/H10: 16mA Output Type Linear output or switch output Output Voltage See the graph below Output Current H2/H3: 5mA H5/H10: 20mA H5/H10: 45mA Service Life 1 x107 (operations) Operating Temperature -40~+100oC (-40~212oF) Degree of Protection IP68(NEMA 6,6P)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

Supply Voltage (Vs) Switch output H1: 3.8-30VDC

                             Analog output H2: 4.5-10.5 VDC H3: 30VAC H5/H10: 10-30VDC

Supply Current        H1: 45mA H2: 7mA H3: 20mA H5/H10: 16mA

Output Type           Linear output or switch output

Output Voltage       See the graph below

Output Current       H2/H3: 5mA H5/H10: 20mA H5/H10: 45mA

Service Life                        1 x107 (operations)

Operating Temperature              -40~+100oC  (-40~212oF)

Degree of Protection                IP68(NEMA 6,6P)



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

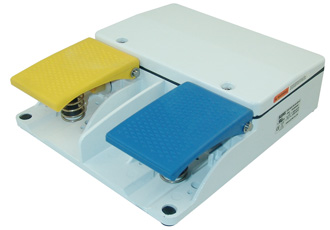

TYPE:FS-62 View Details

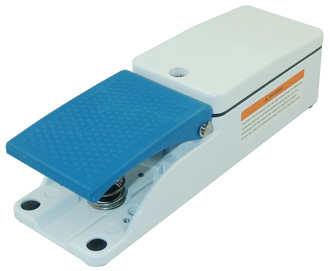

TYPE:FS-61 View Details
