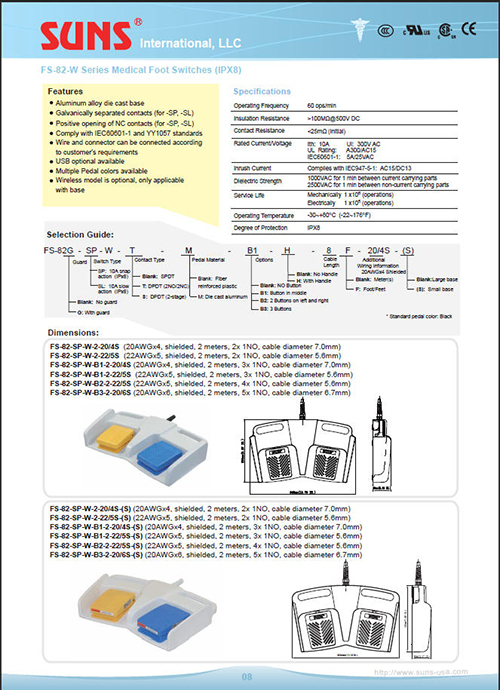

FS-82-W Series Medical Foot Switches(IPx8)

Features: •Aluminum alloy die cast dual base •Galvanically separated contacts (for -SP, -SL) •Positive opening of NC contacts (for -SP, -SL) •UL/CSA/CE/CCC certified •Custom color/wiring available

Installation dimensions:

Specifications: Operating Frequency 60 ops/min Insulation Resistance >100mΩ@500V DC Contact Resistance <25mΩ(initial) Rated Current/Voltage Ith: 10A Ui: 300V AC or 10A/15A 250VAC Inrush Current Complies with IEC947-5-1: AC15/DC13 Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life 1,000,000 (operations) Operating Temperature -30~+80oC (-22~176oF) Degree of Protection IPX8(NEMA 4, 4X, 6, 6P)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FS-82-W(S) (310x193mm) View Details

TYPE:FS-82-W(348x210mm) View Details
