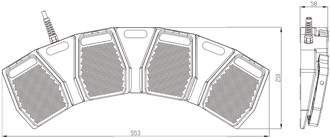

FS74 Series Medical Foot Switches

　Features：
　•Robust glass fiber reinforced plastic housing
•Available in single momentary action or rocker (left and right) styles

 Specifications:
Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage 10A/15A 1/2HP 250VAC
Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Degree of Protection IP20/NEMA 1 or IPX8/NEMA 4,4X,6,6P (add -w suffix)
