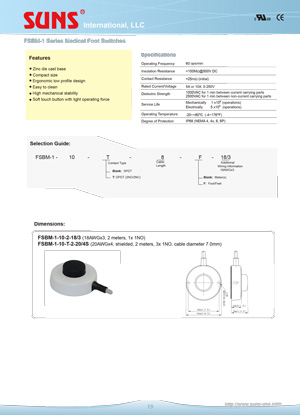

FSBM-1 Series Medical Foot Switches

　Features：
　•Zinc die cast base
•Compact size
•Ergonomic low profile design
•Easy to clean
•High mechanical stability
•Soft touch button with light operating force

 Specifications:
Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage 5A or 10A 0-250V
Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Degree of Protection IPX8 (NEMA 4, 4x, 6, 6P)
