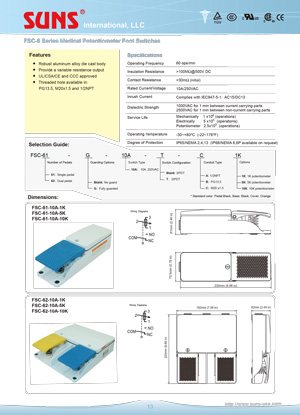

FSC-6 Series Medical Potentiometer Foot Switches

Features: •Robust aluminum alloy die cast body •Provide a variable resistance output •UL/CSA/CE and CCC approved •Threaded hole available in: PG13.5, M20x1.5 and 1/2NPT

Installation dimensions:

Specifications: Operating Frequency 60 ops/min Insulation Resistance >100mΩ@500V DC Contact Resistance <30mΩ(initial) Rated Current/Voltage 2A/250VAC or 10A/250VAC Inrush Current Complies with IEC947-5-1: AC15/DC13 Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life Mechanically 1 x106 (operations) Electrically 5 x105 (operations) Potentiometer 2.5x105 (operations) Operating Temperature -30~+80oC (-22~176oF) Degree of Protection IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

Operating Frequency              60 ops/min

Insulation Resistance            >100mW@500V DC

Contact Resistance                 <25mW (initial)

Rated Current/Voltage           2A/250VAC or 10A/250VAC

Inrush Current                         Complies with IEC947-5-1:  AC15/DC13

Dielectric Strength                 1000VAC for 1 min between current carrying parts

                                                  2500VAC for 1 min between non-current carrying parts

Service Life                             Mechanically     1 x106 (operations)

                                                   Electrically         5 x105  (operations)

                                                   Potentiometer   2.5x105  (operations)

Operating Temperature        -30~+80oC  (-22~176oF)



Degree of Protection           IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FSC-62 View Details

TYPE:FSC-61 View Details
