SXP Micro Switches Series |
Features: *General Standard |
Installation dimensions:
 |
Specifications: Operating speed: 10mm-1m/sec
Operating frequency: Mechanically:120 ops/min,electrically:30 ops/min
Rated Current/Voltage: 16A 125/250VAC,4A 24VDC
3/4HP 125VAC 1-1/2HP 250VAC
Service: Mechanically:1,000,000ops;electrically1,000,000ops
Operating Temperature: -20~80℃without ice
weight: 12-14g
Degree of Protection: IP40
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-

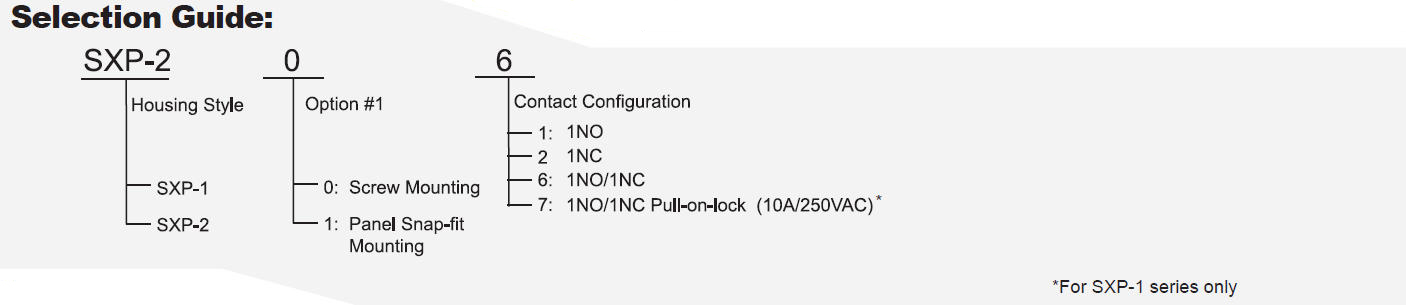

sxp-2 |
0 |
6 |
Housing style |
option #1 |
contact configuration |
sxp-1 |
0:Screw Mounting |
1: 1NO |
sxp-2 |
1: Panel Snap-fit Mounting |
2: 1NC |
|
|
6:1NO/NC snap action |
|
|
7:1NO/NC Pull-on-lock(10A/250VAC) |
