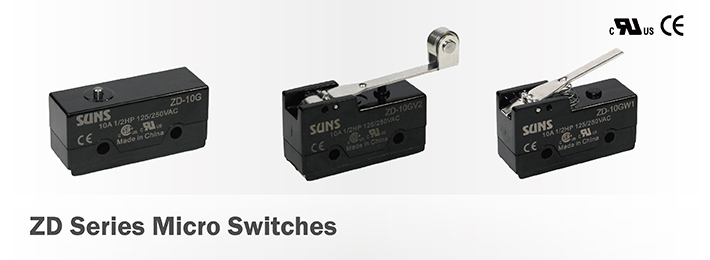

ZD-10G Series Micro Switches |
Features: Specifications Operating Speed 0.01mm-1m/sec Operating Frequency |
Installation dimensions:
 |
Specifications: Operating Speed 0.01mm-1m/sec
Operating Frequency Mechanical: 240ops/min
Electrical: 20 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <15mΩ
Rated Current/Voltage 10A 1/2HP 125/250VAC, 2A 480VAC
0.5A 125VDC,0.25A 250VDC
Dielectric Strength 1000VAC for 1 min between current carrying parts
1500VAC for 1 min between non- current carrying parts
Service Life Mechanically 1 x106 (operations)
Electrically 5 x105 (operations)
Operating Temperature -40~+105oC (-40~221oF)
Humidity 35%~85%RH
Degree of Protection IP00
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Specifications
Operating Speed
|
0.01mm-1m/sec
|
Operating Frequency
|
Mechanical: 240ops/min
Electrical: 20 ops/min
|
Insulation Resistance
|
>100mW@500V DC
|
Contact Resistance
|
<15mW
|
Rated Current/Voltage
|
10A 1/2HP 125/250VAC, 2A 480VAC
0.5A 125VDC,0.25A 250VDC
|
Dielectric Strength
|
1000VAC for 1 min between current carrying parts
1500VAC for 1 min between non- current carrying parts
|
Service Life
|
Mechanically 1 x106 (operations)
Electrically 5 x105 (operations)
|
Operating Temperature
|
-40~+105oC (-40~221oF)
|
Humidity
|
35%~85%RH
|
Degree of Protection
|
IP00
|
