SLC-18 Proximity Switches

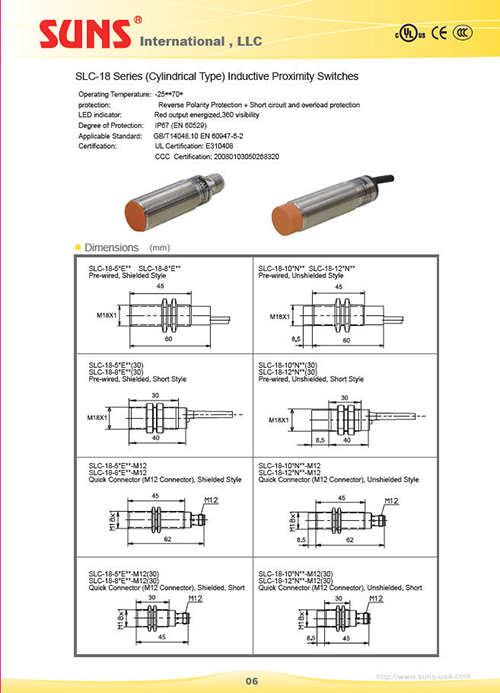

Features: * Optional Normal Open or Normal Close * Optional shielded or non-shielded * EMC GB14048.10 * Short-circuit protection * Polarity-reversing protection * Enclosure protection degree IP67	Installation dimensions:
Specifications: Rated voltage　　　10 ～ 36VDC Rated current　　　<10mA( 24 v ) Load current　　　200mA Repeatablity　　　　< 5% Hysteresis　　　　10% current drop　　　　< 10uA voltage drop　　　　　< 2VDC operation temperature　　-25～70℃ EMC　　　　　　GB14048.10 degree of protection　　　　IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

for example：SLC	18	2	D	E	O	N	H	P
Body Styles	Diameter	Sensing distance	Current	shielded	Output Type	Options	Options	Shell Type
SLC: Cylindrical	18: M18	2: 2mm	A: 20-250VAC	E: shielded	O: Normal Open	N: NPN	Blank: 2m cable	Blank: Copper Nickel
			D: 10-36VDC	N: non-shielded	C: Normal Close	P: PNP	5: 5m cable	S: Stainless
					V: Dual NO&NC		H: M12	P: Plastic



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SLC-18-8D View Details
