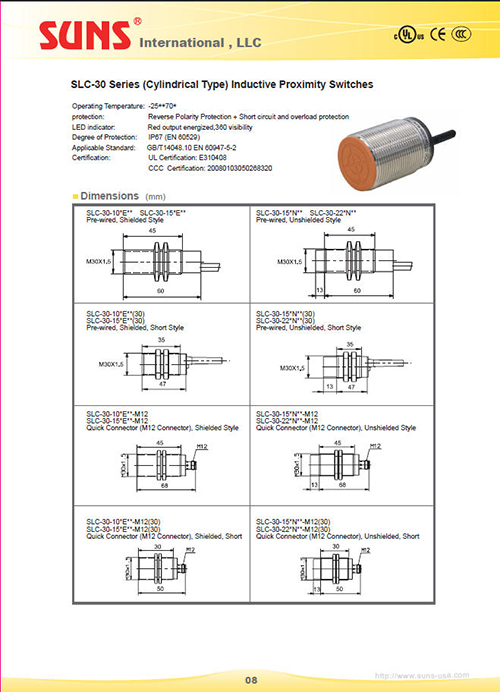

SLC-30 Proximity Switches

Features: *NC & NO available * Unshielded &shielded available *Meet GB14048.10 *protection with short circuit *protection with polar *degree of protection:IP67	Installation dimensions:
Specifications: Rated voltage 　　10 ～ 36VDC Rated current　　　<10mA( 24 v ) Load current　　　　200mA Repeatability　　　　< 5% Hysteresis　　　　　10% Leakage current (max)　　　< 10uA voltage drop　　　　< 2VDC operature temperature　　　-25～70℃ EMC　　　　GB14048.10 degree of protection　　　　IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

for example：SLC	30	2	D	E	O	N	H	P
Body Styles	Diameter	Sensing distance	Current	shielded	Output Type	Options	Options	Shell Type
SLC: Cylindrical	30: M30	2: 2mm	A: 20-250VAC	E: shielded	O: Normal Open	N: NPN	Blank: 2m cable	Blank: Copper Nickel
			D: 10-36VDC	N: non-shielded	C: Normal Close	P: PNP	5: 5m cable	S: Stainless
					V: Dual NO&NC		H: M12	P: Plastic



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SLC-30-15D View Details
