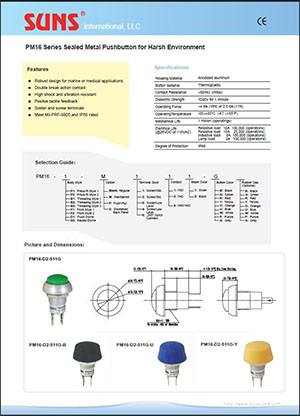

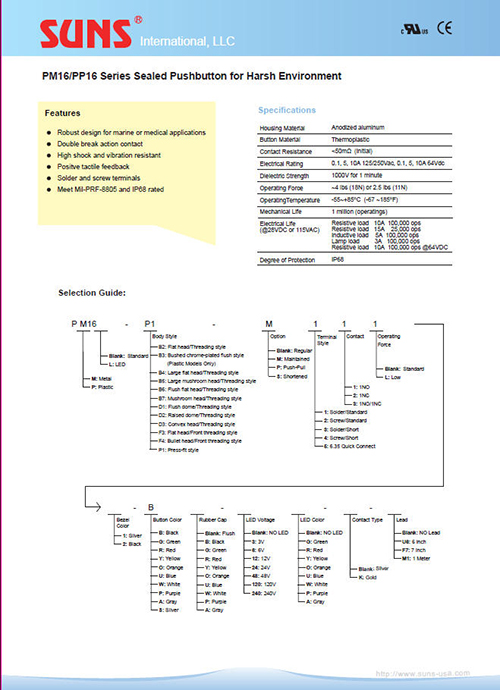

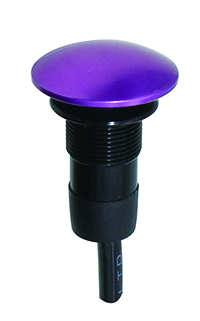

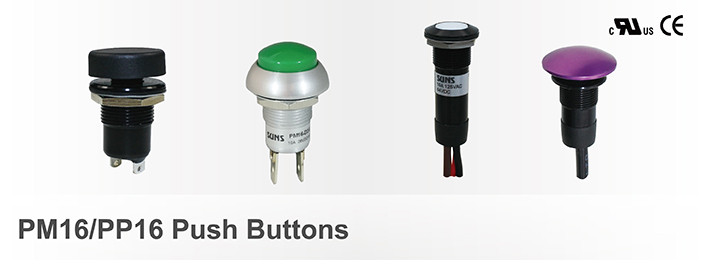

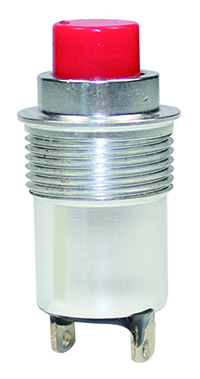

PM16 Push Buttons

Features: *Robust design for marine or medical applications *Double break action contact *High shock and vibration resistant *Positve tactile feedback *Solder and screw terminals *Meet Mil-PRF-8805 and IP68 rated

Installation dimensions:

Specifications: Housing Material: Anodized aluminum Button Material: Thermoplastic Contact Resistance: <50mW (Initial) Dielectric Strength: 1000V for 1 minute Operating Force: ~4 lbs (18N) or 2.5 lbs (11N) OperatingTemperature: -55~+85oC (-67 ~185oF) Mechanical Life: 1 million (operatings) Electrical Life Resistive load 10A 100,000 (operations) (@28VDC or 115VAC): Resistive load 15A 25,000 (operations) Inductive load 5A 100,000 (operations) Lamp load 3A 100,000 (operations) Degree of Protection: IP68

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:PM16-D2-511G View Details	TYPE:PM16-D2-511B View Details	TYPE:PM16-D2-511U View Details
TYPE:PM16-D2-511Y View Details
