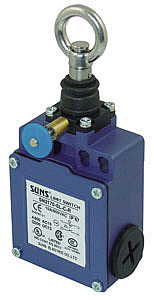

Cable Pull Switches

Features: *max span 125m *General-purpose fiting size and triggering mode *Compatible to EN418 required with emergency stop *button on the surface cover *the switch works in two direction:tripped when the wire *is pulled or breaking. *The switch can be with indicator light to show the state. *Positive Opening of NC contacts *Conform to EN60947-5-5, *ISO13850, ISOTR 12100, IEC 60947-5-1, EN 418

Installation dimensions:

Specifications: Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance: <25mW (initial value) Rated Current/Voltage:　Ith:10A 600V AC (EN60947-5-1) Electrical Rating:　 AC15 A600/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 Operating Temperature:　-25~80℃(-13~176°F) without formation of ice Humidity: < 95%RH Degree of protection:　 IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



CP-71	-70	SL22	-A	-R	-24	-E
Body Styles	Pull Direction	Contact Block	Conduits	Triggering Mode	LED	Emergency Stop Button
	70:Top
	71L:Left	SL13:1NO/3NC			24:24VDC
CP-71	71R:Right	SL22:2NO/2NC	A:1/2NPT	Blank:One-way	120:120VAC	Blank
CP-81	71:Left and right	SL6:4NC/2NO	C:M20	R:Two-way	240:240VAC	E:Emergency stop button



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SND4170-LR View Details	TYPE:SND2170-LR View Details	TYPE:SN4170 View Details
TYPE:SN4170-R View Details	TYPE:SN6170 View Details	TYPE:SND6170-R View Details
TYPE:SN6170-R View Details	TYPE:CP7170-SL22-A-R-24 View Details	TYPE:CP-8171 View Details
TYPE:SND4170 View Details	TYPE:SND4170-R View Details	TYPE:HES-1A/2A-70 View Details
TYPE:HLS-1A/2A-70 View Details	TYPE:HMS-1A-70 View Details	TYPE:SND2170 View Details
TYPE:SN2170 View Details	TYPE:SN2170-R View Details	TYPE:SN6271 View Details
TYPE:SN6270 View Details	TYPE:SN6270-R View Details
