• Overview

    Solenoid Key-Operated Interlock Switches
    Features:
    • Robust zinc die cast head assembly with glass fiber
    reinforced plastic or zinc die cast body
    • Three solenoids voltages: 24Vac/dc, 120Vac and 240Vac
    • Power-to-lock or power-to-unlock types for key trap (2500N holding force)
    • Flexible switching arrangement
    • 24 V, 110 Vac, and 230 Vac coil voltages
    • Override mechanism in cover
    • Head may be rotated into 4 different positions
    • Three conduit openings (knock-out style)
    • Switch position provides status
    • Choice of different contact blocks
    • Indicators for switch and solenoid status (optional)
    • Positive Opening of NC contacts
    • Cable entry available: M20, and 1/2"NPT
    • Approval: CE, cULus (pending)
    Installation dimensions:
    Specifications:
    Rated thermal current (Ith) 5 A
    Sealing:SSD6191 IP65; NEMA 1, 4, 12, 13/SS6191 NEMA 1,4,6,12,13
    Rated impulse withstand (Uimp) :2500 V
    Pollution degree: 3 (macro-environment, installation environment)
    Rated insulation voltage :(Ui) 600 V
    Operating temperature range: -25 °C to 50 °C [-13 °F to 122 °F]
    Storage temperature range: -40 °C to 85 °C [-40 °F to 185 °F]
    Short-circuit protective device (type/maximum rating): Class J fuse (10A/600 Vac)
    Expected mechanical life :
    1,000,000 operations Conditional short-circuit current :1000 A
    Solenoid operating voltage and power : 24 Vac: +10 %, -15 %, 4 W
    110 Vac: +10 %, -15 %, 8 W
    230 Vac: +10 %, -15 %, 9 W
    24 Vdc: +10 %, -20 %, 7 W

    TRADEMARK INFORMATION:
    All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

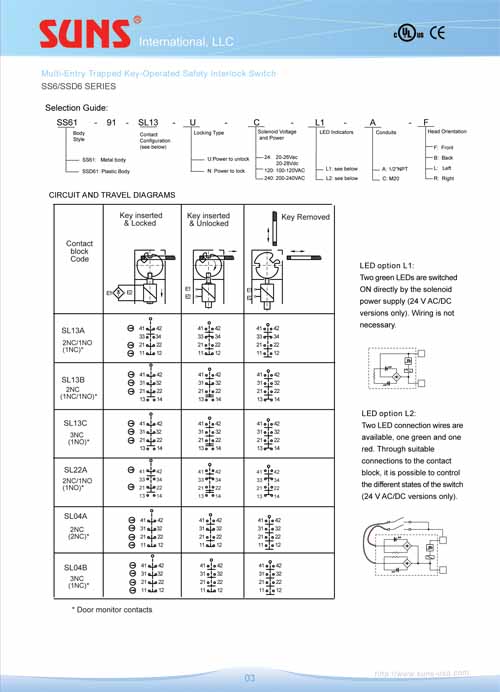

  • Selection Guide
