FSBM-1 Series Medical Foot Switches |
Features: •Zinc die cast base
•Compact size
•Ergonomic low profile design
•Easy to clean
•High mechanical stability
•Soft touch button with light operating force
|

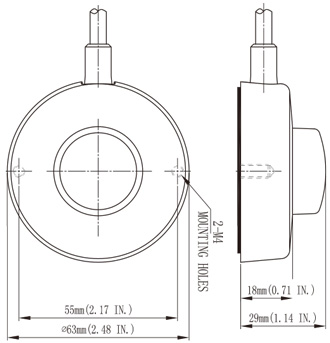

Installation dimensions:
 |
Specifications: Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage 5A or 10A 0-250V
Dielectric Strength 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Degree of Protection IPX8 (NEMA 4, 4x, 6, 6P)
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Operating Frequency
|
60 ops/min
|
Insulation Resistance
|
>100mW@500V DC
|
Contact Resistance
|
<25mW (initial)
|
Rated Current/Voltage
|
5A or 10A 0-250V
|
Dielectric Strength
|
1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
|
Service Life
|
Mechanically 1 x106 (operations)
Electrically 5 x105 (operations)
|
Operating Temperature
|
-30~+80oC (-22~176oF)
|
Degree of Protection
|
IPX8 (NEMA 4, 4x, 6, 6P)
|
